Andromeda 365nm UV-A Curing Light.
The popular Andromeda 365 nm UV-A LED linear model is supplied in three versatile sizes, 180mm, 330mm and 630mm, these are ideal for fixed position application for fluorescent inspection purposes, including crack detection (NDT) UV curing, printing, coating, adhesive and security and crime prevention. The UK designed extruded aluminium casing is rugged, IP65 rated and is offered as a 365nm UV-A wavelengths, with 385nm, 395nm and 405nm wavelengths available on request. The thermally efficient design is suitable in all working environments, ideal for laboratory and industrial applications. A three axis bracket is supplied for ease of mounting.
Each model is supplied with a low voltage 12VDC PSU 100-240V- 50/60Hz with IP rated connector.
For price and availability or to ask about this product.
Contact us Or Call 01484 767467
Andromeda Range Features:
Applications:
Andromeda range has been design to allow for a wide spread of concentrated UV-A light, ideally suited to fast moving conveyor type applications such as NDT inspection on a continuous cycle.

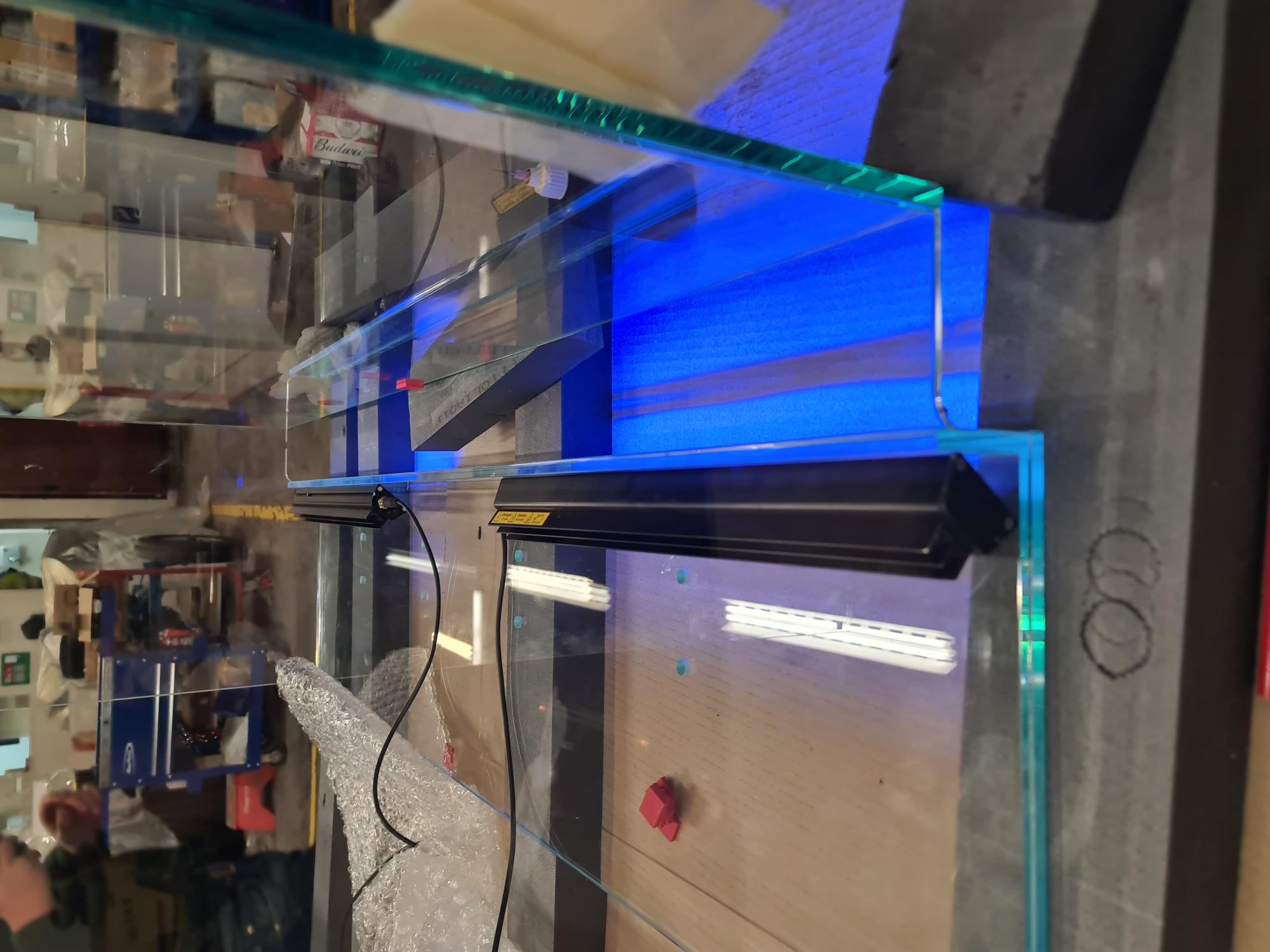

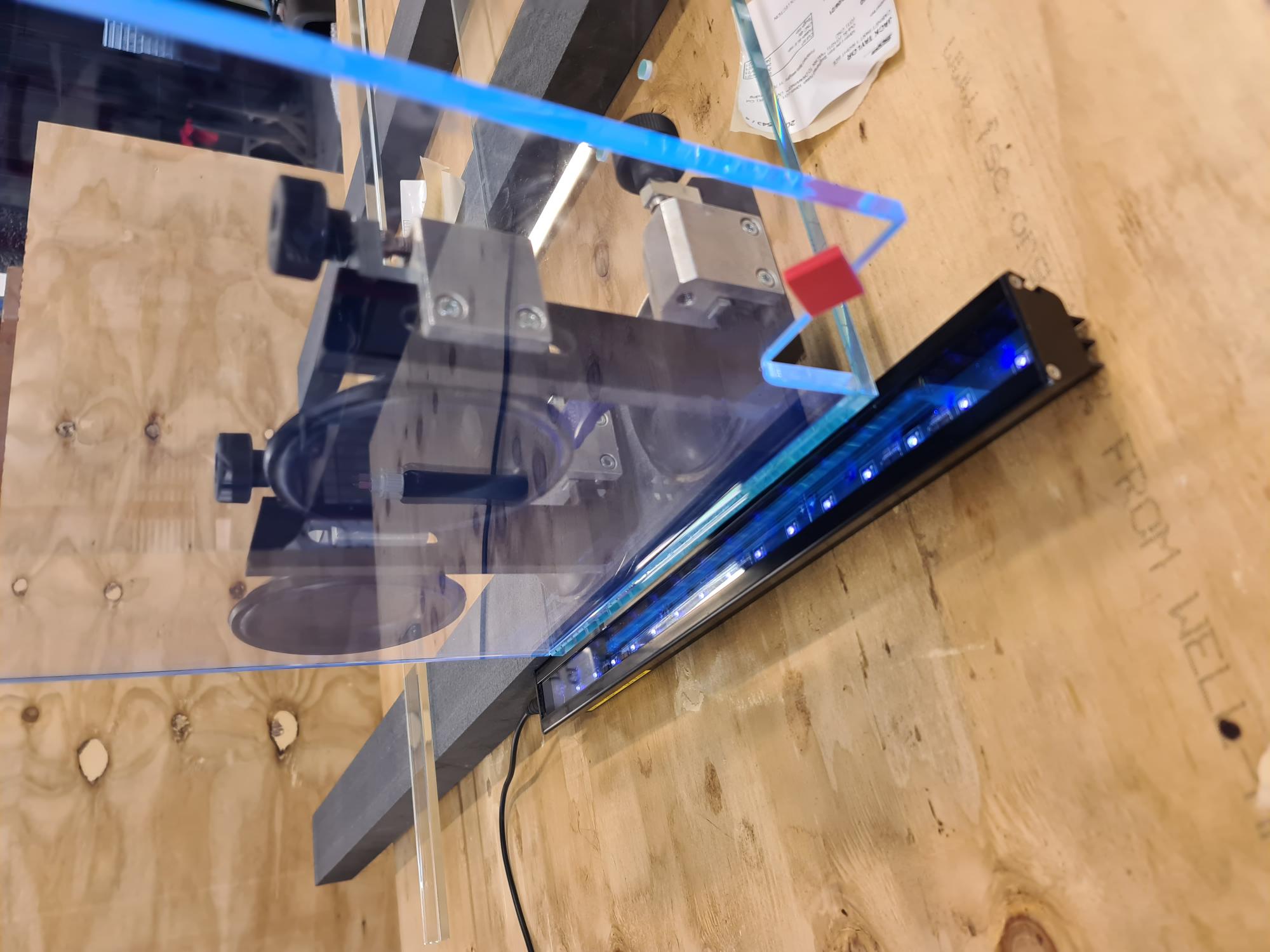

The Andromeda unit in situ curing glass fabrication.

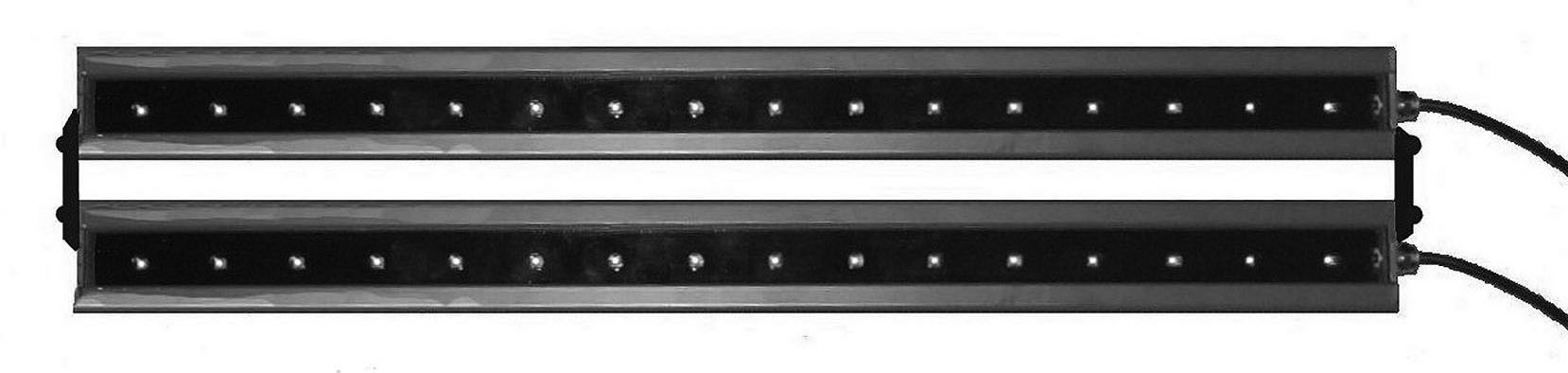

The Andromeda twin combination
. 365nm UV curing
. Printing
. Coating
. Adhesive
. Counterfeit Detection / Security
. Fluorescent Photography
. Crime inspection
. Oil leak detection
. None destructive testing NDT

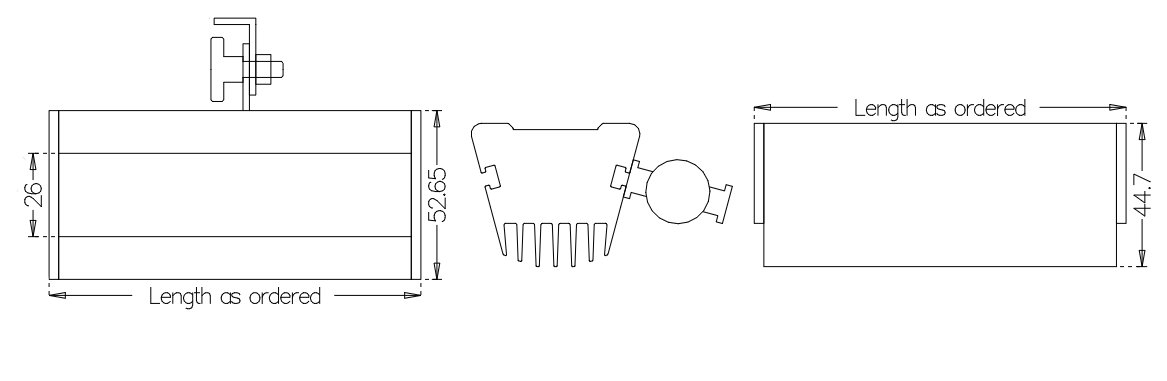

Full dimensions for UV-A 365nm model.
Peak Irradiance : 13000uW/cm2 @ 100mm
Peak wavelength: 370nm
Irradiation area: 150x290mm @100mm
Input Power: 16.7watts
IP65 Rated
Operating temperature 5⁰C – 45⁰C
Instant power – No warm up time
Output irradiation for model AND-150-UVA – 365nm
