Scorpius 4000 and 8000 365nm series
This versatile range of UV-A LED spot light is a high-performance 365nm UV-A LED inspection light, ideal for focusing on specific area’s either in a fixed position or hand held to direct the 365nm UVA light beam as required.
The unit is available as a 365nm UV-A wavelengths, but could also be supplied in, on request, 385nm, 395nm and 405nm wavelengths, and the thermally efficient design, is suitable in all working environments The Scorpius 365nm will produce bright fluorescent effects over a large area given its concentrated 69.2⁰ beam angle. In a fixed position, using the 3 axis yoke supplied – multiple units can be mounted to provide a direct flood of UV-A light for fluorescent inspection, crack detection (NDT) UV curing, printing, coating, adhesive and security and crime prevention.For price and availability or to ask about this product.
Contact us Or Call 01484 767467
Scorpius Range Features:
Applications:
Ideally suited where concentrated UV-A is required (69.2⁰ beam angle) for small curing or inspection bench work – the Scorpius 6 can be mounted on the included adjustable bracket
. 365nm UV curing
. Printing
. Coating
. Adhesive
. Counterfeit Detection / Security
. Fluorescent Photography
. Crime inspection
. Oil leak detection
. None destructive testing NDT
Full dimensions Scorpius 4000 Model
Peak Irradiance : 19.68 mW/cm2 @ 100mm
Peak wavelength: 365nm
Irradiation Dia: 140mm @100mm
Input Power: 24 watts
IP65 Rated
Operating temperature 5⁰C – 45⁰C
Instant power – No warm up time
Output irradiation for Scorpius 8000 UVA 365nm

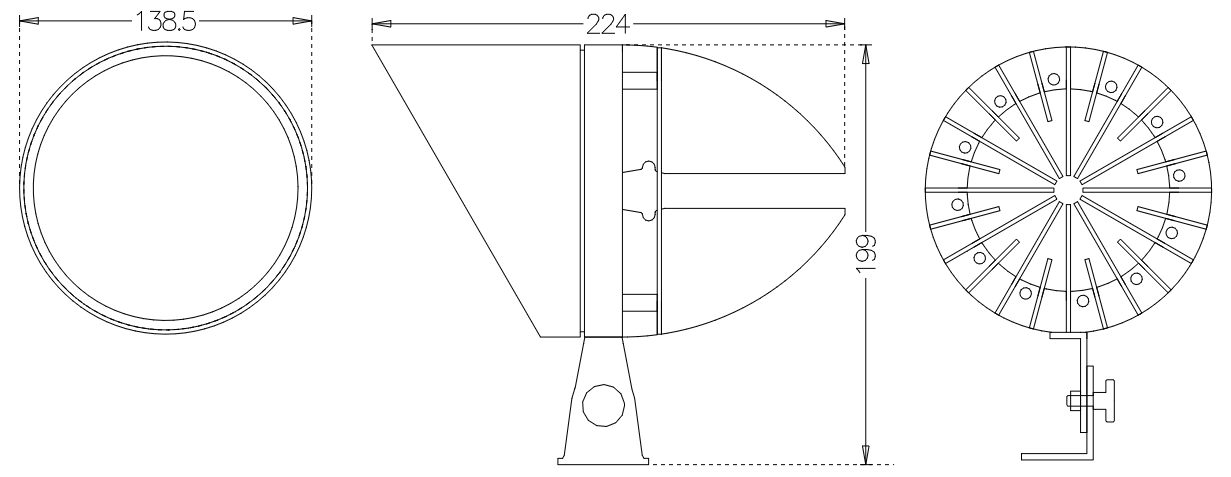

Full dimensions Scorpius 8000 Model
Peak Irradiance : 49 mW/cm2 @ 100mm
Peak wavelength: 365nm
Irradiation Dia: 140mm @100mm
Input Power: 72 watts
IP65 Rated
Operating temperature 5⁰C – 45⁰C
Instant power – No warm up time
